Good Shepherd Organ Rebuilding/Enhancing Project
|
|
| Please contact the choirmaster if you would like to
purchase a rank or a division as a memorial or in honour of your family!
|
|
|
 |

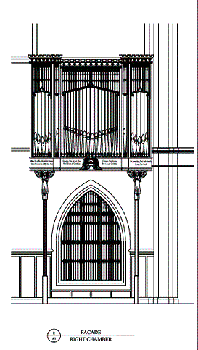

| Proposed facade, Decani side of the Quire (a mirror Positiv division would be on the Cantoris side) |
|
|
 |
| Proposed Antiphonal Case flanking the Abbott window on the west wall |
|
|
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
Present Organ Specification
E.H. Holloway Corp., Indianapolis, Indiana
1970
23 Ranks
Swell Shoe, Cresecndo Shoe
6 General Pistons (+ toe)
Gt 4 Pistons
Sw 4 Pistons
Ped 3 Pistons (thumb only)
Gt/Pd Reversible (+ toe)
Zimbelstern Reversible (toe only)
Sforzando (+ toe)
~~~~~~~~~~~~~~~~~~~~~~~~~~
GREAT (Exposed)
8' Principal
8' Rohr Floete
4' Octave
2' Block Floete
II Fourniture
II Zimbel
Gt 16, Unison Off, 4
Sw/Gt 16, 8, 4
~~~~~~~~~~~~~~~~~~~~~~~
SWELL (Expr)
8' Gemshorn
8' Holz Gedeckt
4' Prinzipal
4' Spill Floete
1 1/3' Nasat
8' Klein Trompet
Tremulant
Sw 16, Unison Off, 4
~~~~~~~~~~~~~~~~~~~~~~~~~~
PEDAL
16' Violone
16' Subbass
8' Spitz Principal
8' Bourdon (from Subbass)
4' Chorale Basse
III Mixture
16' Fagott
4' Schalmey
Gt/Pd 8
Sw/Pd 8,4
|
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|
Proposed Future Specification
68 Ranks
4-manual drawknob console
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
GREAT
16' Violone
8' Principal
8' Violone (ext)
8' Harmonic Flute
8' Chimney Flute
4' Octave
4' Spillflute
2 2/3' Twelfth
2' Fifteenth
1 3/5' Seventeenth
1 1/3' Furniture IV
8' Trumpet
SWELL
16' Bourdon
8' Violin Diapason
8' Bourdon (ext)
8' Viole de Gambe
8' Viox Celeste
4' Prestant
4' Traverse Flute
2' Doublette
2' Piccolo
1 1/3' Quint
2' Plein Jeu III-IV
1' Cymbale III
16' Basson-Hautbois
8' Trompette
8' Hautbois
8' Voix humaine
4' Clairon
POSITIVE
8' Stopped Diapason
4' Principal
4' Clear Flute
2 2/3' Quint
2' Octave
2' Recorder
1 3/5' Terz
2/3' Sharp Mixture IV
8' Cremona
Zimbelstern (from 1970 Holloway)
ANTIPHONAL
8' Diapason
8' Diapason Celeste
4' Octave
4' Spire Flute
2' Super Octave
1 1/3' Mixture II-III
8' Clarinet
8' Festival Trumpet (horizontal, in facade)
PEDAL
32' Contra Violone (digital ext)
32' Contra Bourdon (digital ext)
16' Open Wood
16' Violone (Gt)
16' Subbass (from 1970 Holloway)
16' Bourdon (Sw)
8' Octave (in facade)
8' Octave Wood (ext)
8' Violone (Gt)
8' Stopped Flute (ext 16 Sub - 1970 Holloway)
8' Bourdon (Sw)
4' Fifteenth (from 1970 Holloway)
4' Nachthorn
2' Mixture III (from 1970 Holloway)
32' Contra Trombone (digital ext)
16' Trombone
16' Basson (Sw)
8' Trumpet
8' Basson (Sw)
4' Schalmey (from 1970 Holloway)
|
|
|
